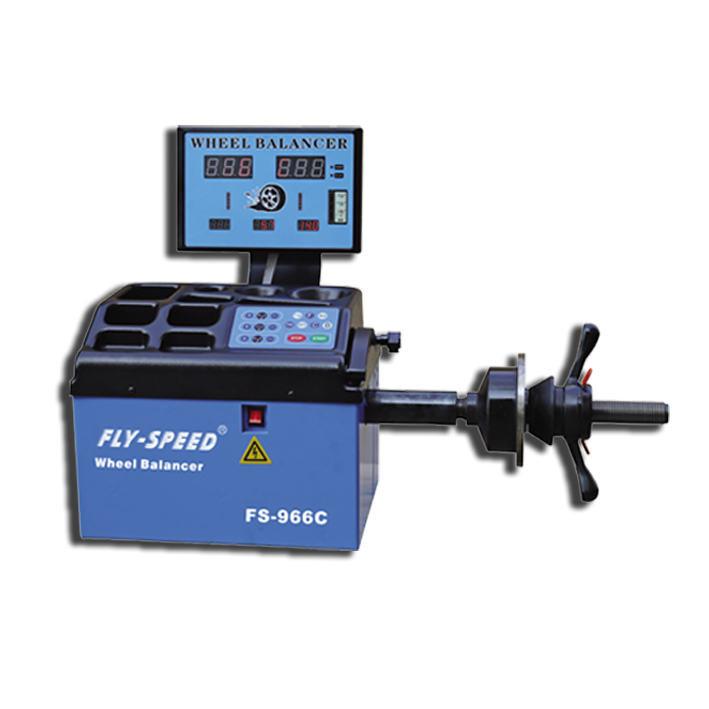

FS-966C


FS-966C

Vehicle balancer
产品特性
Vehicle balancer, small size, smaller space needed.
With the functions of self calibration and fault self checking.
Static balancing, standard dynamic balancing.
Unbalancing value accurate display. Accurate balancing weight position
   indication.
Extra length rotating shaft. Suitable for the all kinds of tyre wheel and
   rim.
With functions of automatic brake and locking. Easy for the wheel
   mounting.
It will lock the wheel automatically when the measuring completes
   without finding unbalancing points.
Low speed motor is adopted. Insure the start-up of heavy wheel, the
   stability of brake and safety of operation.
  • FS-966C



Technical Data
Power supply : AC 110V/220V/50~60Hz
Motor Power : 90W
Rim Diameter: 10"~24"/254~610mm
Rim Width:  1.5"~20"/38~510mm
Max. Wheel Weight : 70 Kg
Balancing Speed: ~130r.p.m
Cycle Time: 8s
Net weight : 41 Kg
Gross weight :52.5 Kg

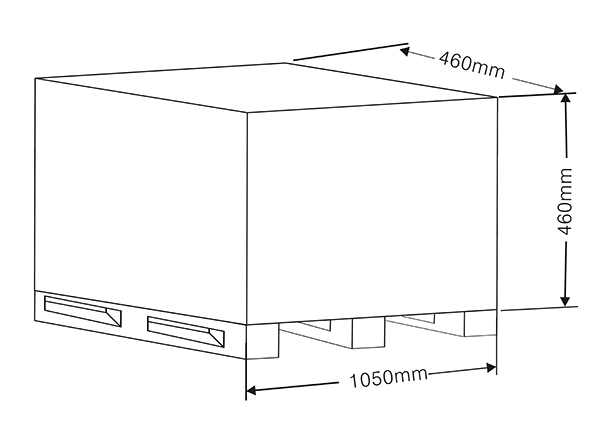

Dimension：1050*460*460mm
N.W.：41kg
G.W.：52.5kg
