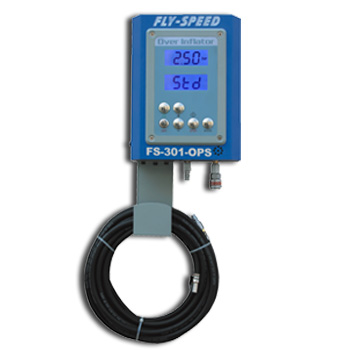

FS-301-OPS

Technical Data
Vehicle Applicable:
Power supply : AC110V/220V/50~60Hz
Power: 40W
Max. Input Pressure : ≤240Psi/16.5Bar
Measuring Range :14.5~210Psi/1~14.5Bar
Operation Temp：+5℃~+40℃
Accuracy : ±1.0Psi/0.07Bar
Display Mode: LED
Units of Measurement :Psi/Bar
Display Increments : 1psi/0.1bar
Dimension : 465X230X120（mm)
Net weight :6.2 Kg
Standard Fittings: 8M High Pressure Charge Hose.
CE conformance



Dimension：730X435X250（mm)
Net weight：6.2 Kg
