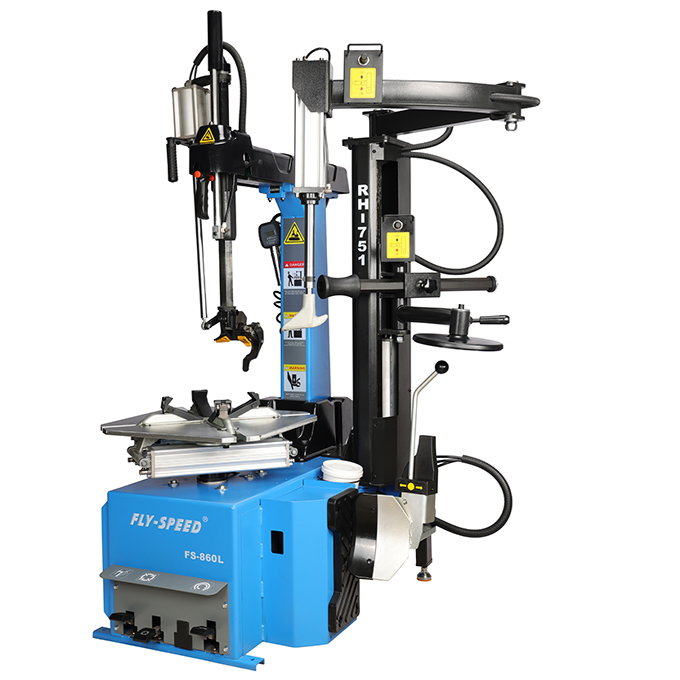

FS-860L+RH751

Tyre changer 860 series

Powerful and reversible mounting head takes the place of traditionalcrowbar. It protects tyre lips and rims thoroughly, which also makes mounting and dismounting convenient and faster.

Maximum mounting and dismounting size is up to 24 inches.Auxiliary arm provides more faster service for mounting/dismounting low profile tyres and run-proof tyres.

With pneumatic handle controls the hexagonal rod up and down liftingsystem.

The professional and user-friendly designed hand-controlled pneumatictyre shovel changes the traditional operation method and provides convenient service.

Professionally designed and manufactured mounting head made of special alloys provides life-time free service.

FS-860L+RH751

Technical data
Product dimension
Packing dimension
Parts list

Technical Data
Power supply : AC 110V/220V/380V/50~60Hz
Motor Power : 1.1KW
Outside clamping: 11"~23"/280~585mm
Max. wheel diameter: 40"/1000mm
Max. wheel width : 16"/410mm
Operating pressure : 8~10bar
Noise: ＜70db
Net weight : 388 Kg
Gross weight :448 Kg

Dimension：1326×876×1863MM
N.W.: 368 Kg
G.W.: 418 Kg
